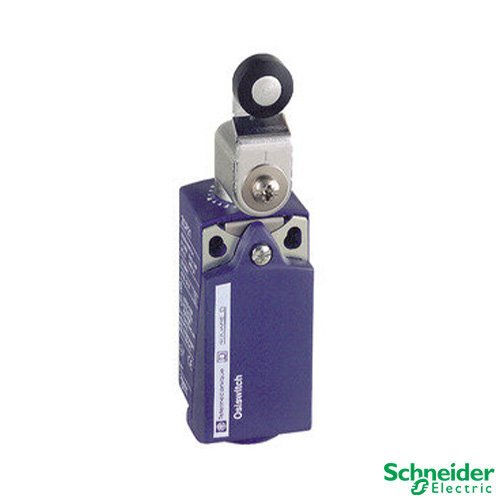

Telemecanique XCKP2118G11 Limit Switch Thermoplastic Roller Lever 1 NC + 1 NO Contact

Code: TELXCKP2118G11

Buy Telemecanique XCKP2118G11 online at Wesco.ie - Part of our large Schneider Electric Industrial range of products. In stock for express delivery

30.55 Ex. VAT

Out of Stock


Min Qty: 1




Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 1
Number of safety auxiliary contacts 0
Type of interface None
Type of interface for safety communication None
Type of control element Roller lever
Type of electric connection Cable entry PG
Output electronic false
Alignment of the control element Other
Rated operation current Ie at AC-15, 125 V 0 A
Rated operation current Ie at AC-15, 230 V 3 A
Rated operation current Ie at AC-15, 24 V 0 A
Rated operation current Ie at DC-13, 125 V 0 A
Rated operation current Ie at DC-13, 230 V 0,27 A
Rated operation current Ie at DC-13, 24 V 0 A
Coating housing Other
Width sensor 31 mm
Diameter sensor 0 mm
Explosion safety category for gas None
Explosion safety category for dust None
Suitable for safety functions false
Housing according to norm DIN EN 50047
Construction type housing Cuboid
Height of sensor 65 mm
Length of sensor 30 mm
With status indication false
Switching function Quick-break switch
Degree of protection (IP) IP66/IP67
Ambient temperature during operating -25...70 °C
Material housing Plastic
Forced opening Yes
