Code: ABBET0003
Shop Wesco.ie for ABB Entrelec 1SNA176282R2300 BJM15 Jumper Bar (2.5Mm) 10 Pole - In Stock for express delivery nationwide.
€4.25 Ex. VAT
Out of Stock
Min Qty: 1

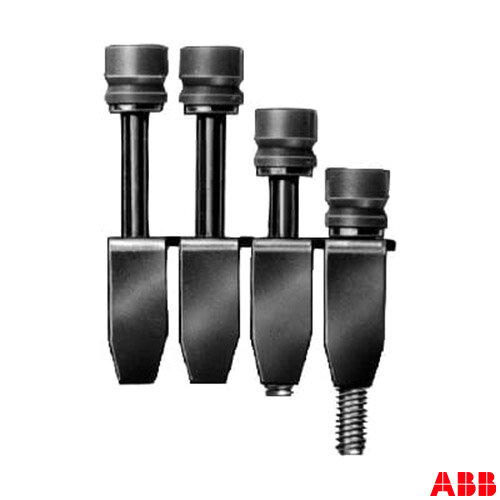

ABB BJM15 IP20 10 Pole Jumper Bar (2.5mm)
IP20 assembled screw jumper bars, - Fractionable model with captive screws and spacers, - Allows connection between consecutive blocks only.
Product Specification:
| Colour: | Grey |
| Customs Tariff Number: | 85369010 |
|
Dimensions: |
|
| Product Net Width: | 5 mm |
| Product Net Height: | 20.6 mm |
| Product Net Depth / Length: | 5 mm |
| Product Net Weight: | 16.9 g |
|
Technical: |
|
| Spacing: | 5 mm |
| Function: | Jumper Bars |
| Rated Current (In): | Main Circuit 24 A |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Insulation Material: | Polyamide |
| Mounting on DIN Rail: | G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | |
| Suitable For: | D1/5.ADO |
| D1.5/5.ADO.NF | |
| D2.5/5ADO | |
| D2.5/5.D2.ADO | |
| MA2.5/5 | |
| MA2.5/5-2CPE | |
| MA2.5/5-CPE | |
| MA2.5/5D-2CPE | |
|
Environmental: |
|
| Ambient Air Temperature: | Operation -55 ... +110 °C |
