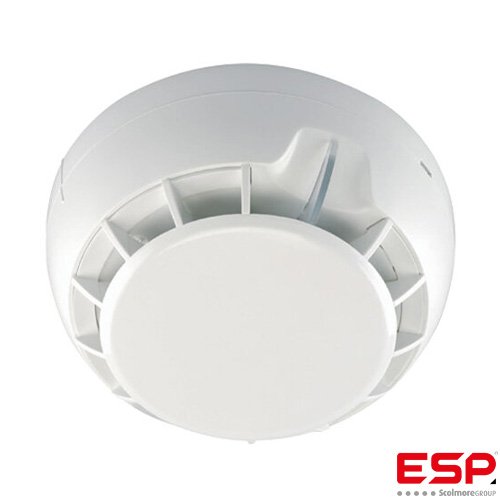

Optical Smoke Detector + Base
- Optical-smoke detector
- Auto compensation
- Digital processing algorithm
- Low profile design
- LED indication with 360° visibility
- Sensor status indication on every 8 seconds
- Rubber gasket ring for increased protection of the smoke chamber
Technical Specifications:
| Type | Conventional |
| Approval | EN54-7 |
| Class | N/A |
| Operating Voltage | 9 - 30VDC |
| Standby Current @ 24v | < 60µA |
| Alarm Current @ 24v | 49mA |
| Wire Gauge | 0.4mm - 2.0mm TWIN |
| Operating Temperature | -10°C to 60°C |
| Test Facility | Simulated Smoke |
