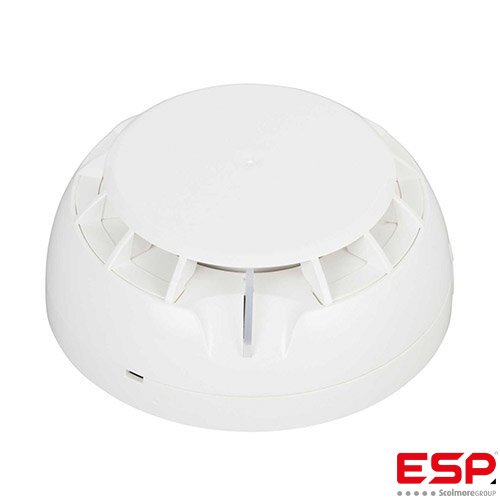

Fixed Heat Detector + Base

18.50 Ex. VAT

In Stock

Min Qty: 1


 Fixed Heat Detector + Base

  • Fixed heat detector
  • Detects temperatures over 60°C, class A2/S
  • Digital processing algorithm
  • Low profile design
  • LED indication with 360° visibility
  • Sensor status indication on every 8 second

Technical Specifications:

 Type   Conventional
 Approval  EN54-5
 Class  A2S
 Operating Voltage  9 - 30VDC
 Standby Current @ 24v  < 60µA
 Alarm Current @ 24v 49mA
 Wire Gauge  0.4mm - 2.0mm TWIN
 Operating Temperature  -10°C to 60°C
 Test Facility  Heat Source
