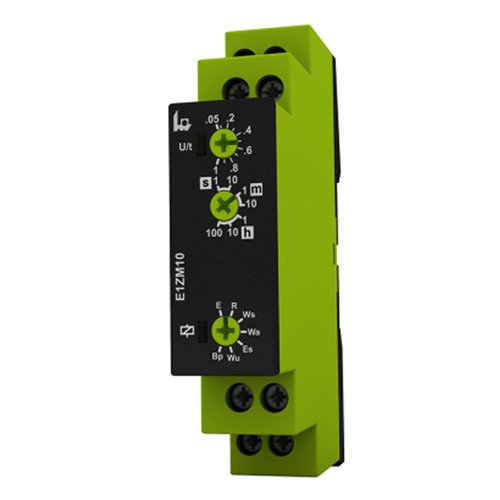

The Tele E1ZM10 12V-240V AC/DC is a versatile multi-function timer relay designed for precision control. It operates across a broad supply voltage range of 12V to 240V AC/DC. This compact device features seven distinct timing functions to suit various industrial needs. Its slim 17.5mm profile ensures efficient use of space on DIN rails. Reliability and accuracy are at the core of this electronic timing solution for modern automation systems.
Key Advantages for Users
This Tele E1ZM10 12V-240V AC/DC timer relay simplifies inventory management by combining seven timing functions into one compact unit.
Users benefit from seamless integration across diverse power systems thanks to its wide voltage tolerance.
- Reduces hardware costs by replacing multiple single-function relays.
- Simplifies installation with a standard DIN rail mounting design.
- Enhances system monitoring through clear LED status indicators.
- Minimises downtime with high repetition accuracy and robust construction.
Design Features & Technical Specifications
- Time Range: 0.05 seconds to 100 hours
- Functions: ON delay, OFF delay, Single shot, Flasher pause first, and more.
- Output: SPDT (1 Changeover contact) rated at 8A / 250V AC.
- Housing: 17.5mm wide, self-extinguishing plastic (IP40 rated).
- Mounting: DIN rail TS 35 according to EN 60715.
- Indicators: Green LED for supply/timing and Yellow LED for relay status.
