Code: TELLXD1B7
Buy Telemecanique LXD1B7 online at Wesco.ie - Part of our large Schneider Electric Industrial range of products. In stock for express delivery.
€17.92 Ex. VAT
In Stock
Min Qty: 1
QtyAdd

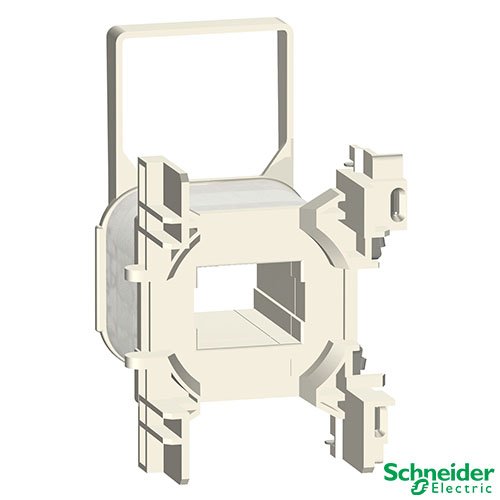

TeSys Deca replacement coil 24V AC 50/60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).
Product Specification:
- Range: TeSys
- Product or component type: Contactor coil
- Device short name: LXD1
- Control circuit type: AC at 50/60 Hz
- [Uc] control circuit voltage: 24 V AC 50/60 Hz
- Average resistance: 5.37 Ohm at 20 °C
- Inductance of closed circuit: 0.22 H
- Product compatibility: LC1D09...D38
- CAD: LC1DT20...DT40
- Mechanical durability: 15 Mcycles
- Maximum operating rate: 3600 cyc/h 60 °C
- Coil technology: Without built-in suppressor module
- Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) / Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) / Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
- Inrush power in VA: 70 VA 60 Hz cos phi 0.75 (at 20 °C) / 70 VA 50 Hz cos phi 0.75 (at 20 °C)
- Hold-in power consumption in VA: 7.5 VA 60 Hz cos phi 0.3 (at 20 °C) / 7 VA 50 Hz cos phi 0.3 (at 20 °C)
- Heat dissipation: 2…3 W at 50/60 Hz
- Ambient air temperature for operation: -5…60 °C
- Net weight: 0.07 kg
