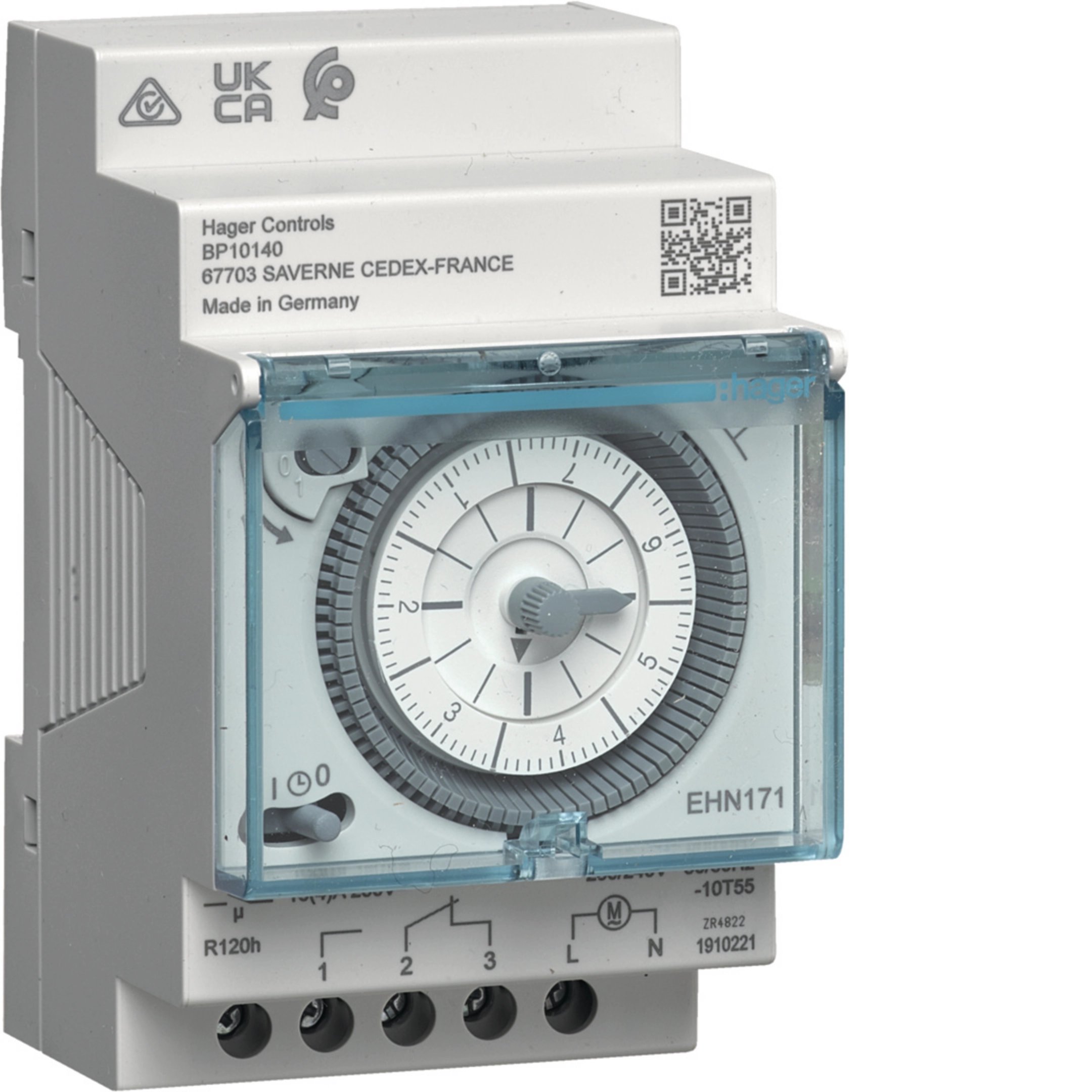

Hager HAGEHN171 | Weekly Time Switch 1 Channel 3 Modules with Reserve
Time Switches | Switchgear & Distribution
The Hager EHN171 is a 1-channel weekly time switch designed to automatically control lighting, ventilation, and other electrical circuits on a repeating 7-day cycle. Built with a 200-hour power reserve, it maintains its programmed schedule through power outages without needing to be reset, and mounts easily onto a standard DIN rail.
Features:
- 1-channel weekly (7-day) programming cycle
- 200-hour power reserve to retain settings during power cuts
- Changeover contact suitable for both NC and NO wiring configurations
- 2-hour minimum switching interval
- Compact 3-module DIN rail mounting
Benefits:
- Keeps schedules accurate even after extended power outages
- Flexible wiring to suit a range of circuit types
- Straightforward installation into standard distribution boards
- Ideal for automated control of lighting, ventilation, and similar loads
A dependable, low-maintenance solution for weekly scheduling needs in residential and commercial installations.
Product Specification:
| Number of channels: | 1 |
|---|---|
| Rated operational voltage Ue: | 230 - 240 V |
| Frequency: | 50 - 60 Hz |
| Number of modules: | 3 |
| Installation mode: | For mounting on DIN rail |
| Switch mode: | Change-over contact |
| Programme cycles: | 1 x 7 days |
| Shortest switching time: | 2 h |
| Max. power (cos phi 0.6): | 4 A |
| Height: | 90 mm |
| Width: | 54 mm |
| Depth: | 60 mm |
